Individual solutions for the highest precision

Through the insert program of Hermann Bilz you will achieve unique productivity, efficiency, reliability and economy. By manufacturing "Made in Esslingen" in combination with leading coating-companies , we can also offer special geometries at short notice and in small quantities.

Inquiry technical data

Indexable inserts from Hermann Bilz

The insert-production is characterized by its high precision, tightest tolerances with fully-milled or eroded cutting plates. The high accuracy allows their use for the production of holes with IT8. The grinding technology enables different geometries of chip breakers for secure chip breaking . Special made HSS indexable inserts are available with high positive rake angles to significantly reduce the cutting forces in unstable conditions and large cutting widths. The application-specific cutting edge preparation, in combination with wear-resistant or friction-minimizing coating, ensures maximum performance.

A special highlight are guiding chamfers on the side of the cutting inserts, which ensure a safe and chatter-free guidance of long protruding drilling tools. In addition, they smooth the bore surface so that you almost achieve grinding quality.

Special geometries are availble in small quantities. catalog
To understand the logical structure of our article numbers please see our designation system

Standard indexable inserts

ACEX _ _ _ _ _ _ FRH _ _

reboring and countersinking with up to 25 mm cutting width
2 ground chip breakers

CPHX _ _ _ _ _ _ L _ _

[Translate to Englisch:] CPHX-Wendeschneidplatte

reboring and countersinking for aluminum alloys
2 ground chip breakers

LCHX / LCEX _ _ _ _ _ _ FRH _ _

[Translate to Englisch:] LCHX-Wendeschneidplatte

reboring and countersinking with up to 30 mm cutting width
2 ground chip breakers

LCHX / LCEX _ _ _ _ _ _ FRZ _ _

reboring and countersinking with guide chamfers and up to 30 mm cutting width
2 ground chip breakers

MCEX _ _ _ _ _ _ FRH _ _

reboring and countersinking
2 ground chip breakers

SCHW _ _ _ _ _ _ FN _ _

[Translate to Englisch:] SCHW-Platte

spotfacing and milling
without chip breakers

SCHX _ _ _ _ _ _ FN1 _ _

spotfacing and milling
4 ground chips breakers

SCMX _ _ _ _ _ _ ER _ _

[Translate to Englisch:] SCMX-Wendeschneidplatte

reboring and countersinking
4 sintered chips breakers

SCHW _ _ _ _ _ _ ACFRH _ _

[Translate to Englisch:] SCHW-Wendeschneidplatte

reboring and reaming for cutting width < 0,5
without chip breakers

SCHW _ _ _ _ _ _ ACRFRZ _ _

reboring and reaming with guide chamfers for cutting width < 0,5
without chip breakers

SCHX _ _ _ _ _ _ FRH _ _

reboring and countersinking
2 ground chips breakers

SCHX _ _ _ _ _ _ FRZ _ _

reboring and countersinking with guide chamfers
2 ground chips breakers

TCEW _ _ _ _ _ _ FN _ _

[Translate to Englisch:] TCEW-Wendeschneidplatte

chamfering, countersinking and reboring
without chips breakers

TCEX _ _ _ _ _ _ FL / FR _ _

[Translate to Englisch:] TCEX-Wendeschneidplatte

chamfering, countersinking and reboring
3 ground chips breakers

XDCW _ _ _ _ _ _ _ _

[Translate to Englisch:] XDCW-Wendeschneidplatte

chamfering, countersinking and reboring
without chips breakers

XBHX _ _ _ _ _ _ FR3 _ _

boring and reboring
2 high positive ground chips breakers

XBHX _ _ _ _ _ _ FR7 _ _

boring and reboring
2 ground chips breakers for short chips

XCEX _ _ _ _ _ _ FRZ _ _

[Translate to Englisch:] XCEX-Wendeschneidplatte

boring and reboring with guide chamfers
2 ground chips breakers

XCEX _ _ _ _ _ _ FRZ4 _ _

boring and reboring with guide chamfers
2 ground chips breakers and chip splitter

ISO - indexable inserts

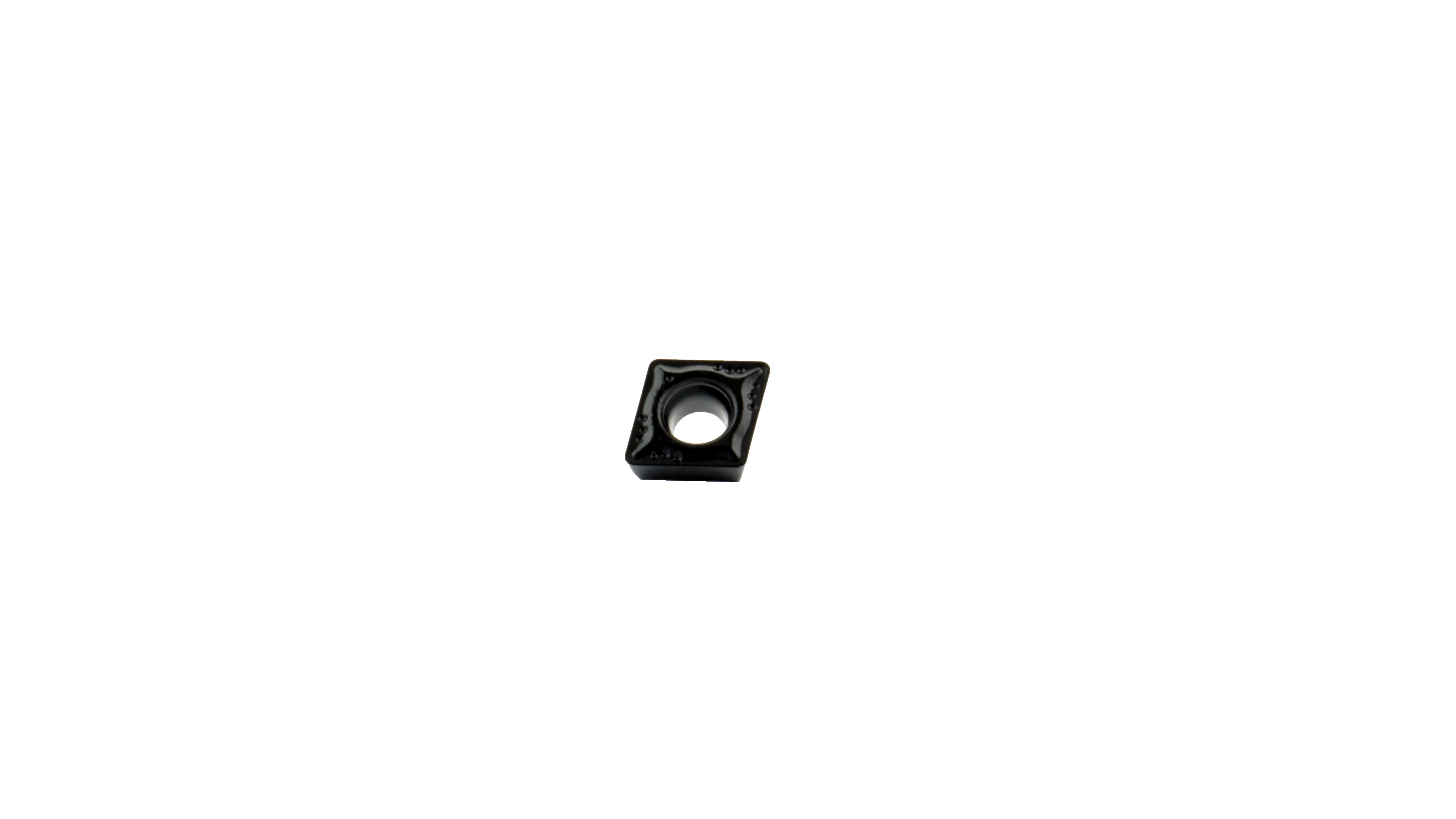

CCMT _ _ _ _ _ _ _ _ / CPGT _ _ _ _ _ _ _ _

countersinking, reboring, boring and milling
4 sintered chip breakers

MCMT _ _ _ _ _ _ EN _ _

countersinking, reboring and milling
4 sintered chip breakers

SCMT _ _ _ _ _ _ EN _ _

spotfacing and milling
4 sintered chip breakers

TCMT _ _ _ _ _ _ EN _ _

chamfering, countersinking and reboring
3 sintered chip breakers

PCD-inserts

MCEW _ _ _ _ _ _ FR5D1

countersinking, reboring and boring of aluminum alloys

SCHW _ _ _ _ _ _ FR5D1

countersinking, reboring and boring of aluminum alloys

SCHW _ _ _ _ _ _ FRHD1

Countersinking, reboring and reaming of aluminum alloys
max. cutting width 3,5 mm
